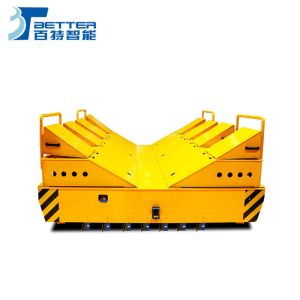

China High-Performance Trackless Electric Transfer Carts for Sale wholesale

High-Performance Trackless Electric Transfer Carts for Sale

Name: HighPerformance Trackless Electric Transfer Carts for Sale
Brand: BETTER
Price: 3000 USD

Ask Latest Price

Video Channel

MOQ :1 Piece

Price :US$3000-3500

Place of Origin :Xinxiang

Brand Name :BETTER

Packaging Details :Single Package: Dimensions 300×200×100 cm; Gross Weight 1000 kg; Quantity per Package 1 unit.

Delivery Time :15-30 days

Payment Terms :L/C,T/T

Supply Ability :50 Sets/Month

Model Number :BXC

Product Name :Battery-Power Transfer Cart

Usage :Heavy Duty Material Transportation

Load Capacity :1-300ton

Special Function :Anti-Explosion,Heat-Resistant,Lifting,Customized

Material :Steel

Transport Package :The Whole Cart Will Be Packed by Tarp.

Specification :2000*2000*500

Trademark :BETTER

Origin :Xinxiang

HS Code :84289090

Production Capacity :50 Sets/Month

Contact Now

Add to Cart

View Product Description

High-Performance Trackless Electric Transfer Vehicle for Sale

1. Introduction of Warehouse Transfer Vehicle
BETTER's material handling trailer vehicles are movable platforms used for the horizontal movement of materials, assemblies and other items. Originally designed for load transfer between overhead crane bays, transfer carts are now used to carry loads along assembly lines, carry an entire shift of production on and even as a stable movable machine base.These transfer carts are widely used in machinery factory, warehouses and metallurgical plants,foundry workshops as a motorized automation transporter or with the crane to transport heavy loads over cross.

2. Customized of Warehouse Transfer Vehicle

BETTER is specialized in designing and manufacturing of heavy duty Material Transfer Cart:
Transfer Cart: Rail transfer cart, Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Speical Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipmet, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.

3. Application of Warehouse Transfer Vehicle

Uses of warehouse transfer vehicle:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.

High-Performance Trackless Electric Transfer Carts for Sale

4. Applicable Sites of Warehouse Transfer Vehicle
BETTER conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!

5. Parameter of Warehouse Transfer Vehicle

Model		BXC-2t	BXC-5t	BXC-10t	BXC-16t	BXC-20t	BXC-25t	BXC-30t	BXC-40t	BXC-50t	BXC-63t	BXC-80t	BXC-100t	BXC-150t
Rated Load(t)		2	5	10	16	20	25	30	40	50	63	80	100	150
Table Size (mm)	Length(L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600	6000	6500	10000
	Width(W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500	2600	2800	3000
	Height(H)	450	500	500	550	550	600	600	650	650	700	800	900	1200
Wheel Base(mm)		1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Diameter (mm)		270	270	300	350	350	400	400	500	500	600	600	600	600
Wheel Quantity		4	4	4	4	4	4	4	4	4	4	4	4	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed (m/min)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-18
Total Power(kw)		2	3	2.2	2.2	2.2	3	3.5	4	5	6.3	8	10	15
Battery Capacity(Ah)		150	180	180	200	220	220	260	300	330	400	400	440	600
Battery Voltage(V)		48	48	48	48	48	48	48	48	48	48	72	72	72
Running Time When Full Load		4.32	5.4	4.8	4.3	4	4	3.5	3.6	3.3	3	3.6	3.2	2.9
Running Distance for One Charge(km)		6.5	8.1	7.2	5.1	4.8	4.8	4.2	4.3	4	3.6	4.3	3.8	3.2
Max Wheel Load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Recommended Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50	P50	QU100	QU100

6. Advantages of Warehouse Transfer Vehicle
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Suitable for All Kinds of Weight The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
----To Increase Output The multidirectional battery powered trolley on wheels minimizes forklifts and cranes usage, due to the lifting deck which allows to these poly directional battery-driven trolleys to lift and move the loads where needed.
----No limits for the Spaces The steering battery-driven trolley is rather compact and with all the different types of steering: 90 degree, carousel, diagonal, compass and so on. And it can operate even in very narrow spaces.

7. Our Factory

8. Q&A
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
